Model: |
WDS-850 |
Total Power Supply: |
8400W |
Upper Heating Power Supply: |
1600W |
Lower Heating Power Supply: |
1600W |
IR Heating Power Supply: |
5000W(2000W Controlled) |
Model: |
WDS-850 |
Total Power Supply: |
8400W |
Upper Heating Power Supply: |
1600W |
Lower Heating Power Supply: |
1600W |
IR Heating Power Supply: |
5000W(2000W Controlled) |

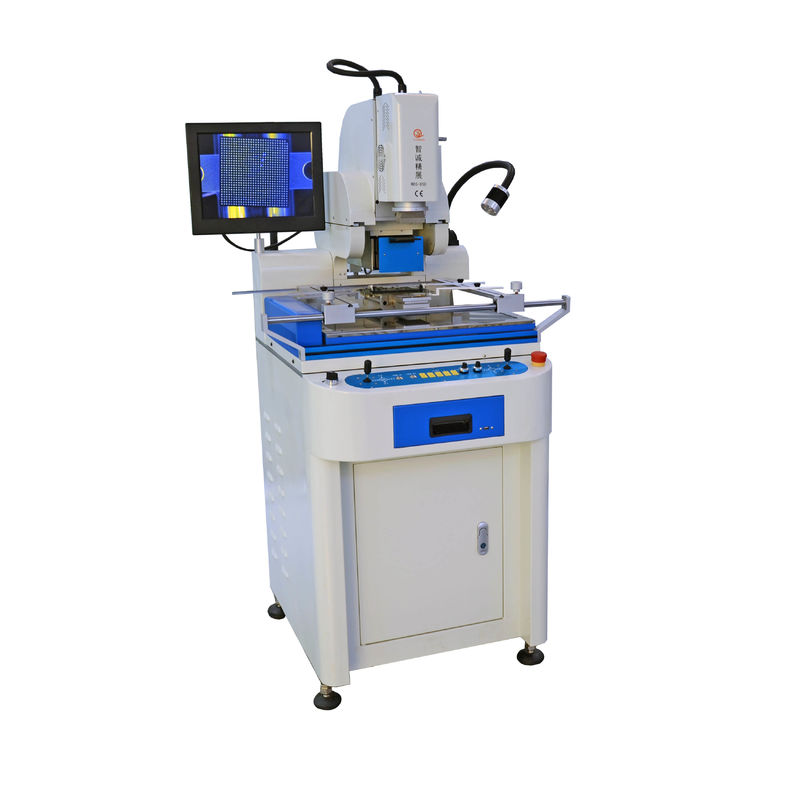

HD display Vacuum adsorption WDS-850 Optical alignment automatic repair equipment
Excellent performance features
HD optical alignment and intelligent control
The integrated design of hot air head and mounting head has the functions of automatic mounting, automatic welding and automatic disassembly. High precision K-type thermocouple (KSENSOR) cLOSED Loop control, up and down independent temperature measurement, temperature control accuracy up to ± 1 degree, Over-temperature protection alarm function, software encryption and anti-stay function.
HD display
High-definition imported CCD(2 million pixels) digital imaging, automatic optical zoom system, automatic precision alignment control system with laser red dot, using 15 inch high-definition industrial display screen dispaly.
Vacuum adsorption and preheating platform
The upper heating head is equipped with a vacuum suction pipe for chip adsorption. The bottom preheating platform adopts imported excellent heating materials(infrared gold-plated light tube)+anti-flash thermostatic glass (temperature resistance up to 1800°C). The preheating area is up to 500*420mm. The preheating platform, splint device and cooling system can be moved as a whole in the X direction. Make PCB positioning and folding welding more safe and convenient.
Specification
| Model | WDS-850 |
| Total power supply | 8400W |
| Upper heating power supply | 1600W |
| Lower heating power supply | 1600W |
| IR heating power supply | 5000W(2000W controlled) |
| Power supply | 220V, 50/60Hz |
| Maximum | 680*550mm |
| Minimum | 10*10mm |
| Temperature measuring interfaces | 5pcs |
| Chip zoom in and zoom out | 2-50/times |
| The PCB thickness | 0.5～8mm |
| Apply chip size | 0.8*0.8～120*120mm |
| Applicable minimum chip spacing | 0.15mm |
| Maximum mouting load | 300g |
| Mounting precision | ±0.01mm |
| Machine dimension | L970*W700*H830mm |
| Machine weight | 200KG |
