HD Touch Screen BGA Rework Station 7600W Semi Automatic Operation

Name: HD Touch Screen BGA Rework Station 7600W Semi Automatic Operation
Brand: Shenzhen Wisdomshow Technology Co.,ltd
SKU: WDS-680
Price: 1,280.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WDS

Certification: CE

Model Number: WDS-680

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Packaging Details: Wooden case

Delivery Time: 8-15 working days

Payment Terms: T/T, Western Union,

Supply Ability: 150 UNITS PER MONTH

Get Best Price

Product Details

Product Description

Ratings & Reviews

Highlight:
                                                                                                                                                            7600W BGA Rework Station, HD Touch Screen BGA Rework Station, 7600W SMD Rework Station


Power Supply AC:	Ac220v±10%， 50/60Hz	The Power Supply:	7600W
Suitable PCB Size:	Max 610480mm Min 1010mm	Applicable Chip Size:	Max 8080mm Min 0.80.8mm
Mounting Precision:	0.3-8mm

Power Supply AC:	Ac220v±10%， 50/60Hz
The Power Supply:	7600W
Suitable PCB Size:	Max 610480mm Min 1010mm
Applicable Chip Size:	Max 8080mm Min 0.80.8mm
Mounting Precision:	0.3-8mm

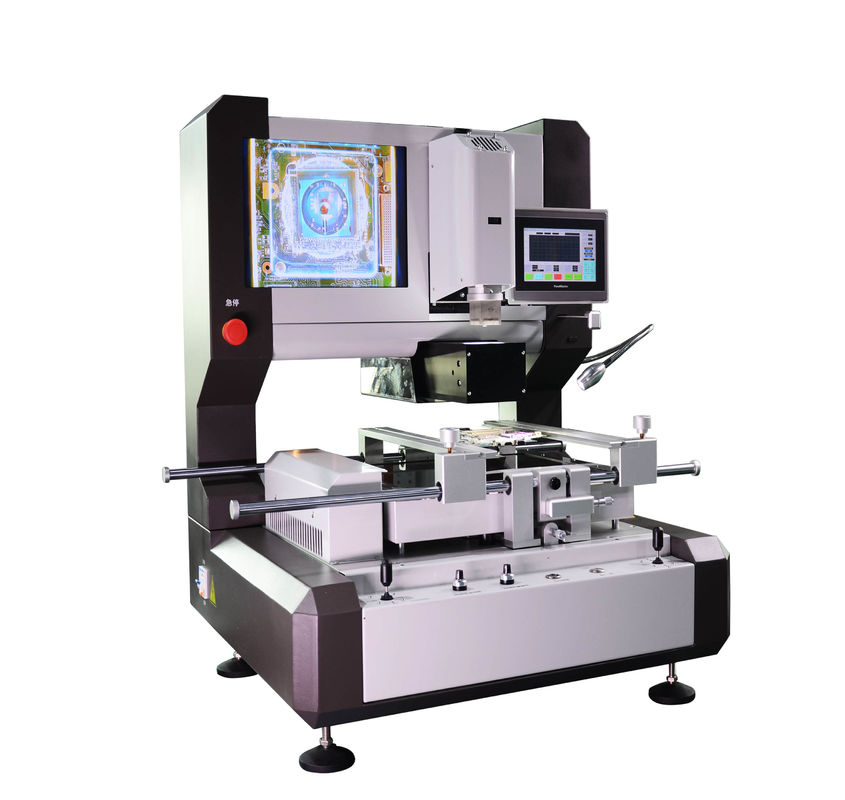

HD Touch Screen BGA Rework Station 7600W Semi Automatic Operation

WDS-680 Automatic Optical BGA Rework Station

Parameter Specification

MODEL	WDS-680
Power supply AC	Ac220v±10%, 50/60Hz
The power supply	7600W
Upper hot air heating	Max 1200W
Lower hot air heating	Max 1200W
IR PREHEATER	5000W(2000W controlled)
Suitable PCB size	Max 610480mm Min 1010mm
Applicable chip size	Max 8080mm Min 0.80.8mm
Mounting precision	0.3-8mm
Temperature measuring interface	3pcs
Maximum mouting load	150G
Overall dimensions	L760W800H880
Machine weight	85KG

Infrared gold-plated light tube heating

Adopt infrared gold-plated light tube + high temperature resistant quartz glass, rapid heating, uniform temperature, good preheating effect, the large movement bottom preheating area, the PCB fixture can be adjusted flexibly in X and Y axes, and the maximum splint size can reach 610*480mm. The moottom strong cross-flow fan refrigeration, cooling quickly and reliably. In frared gold plated light tube can control the heating independently.

Precise optical alignment system

High-definition digital camera color optical vision alignment system, with split-light dual-color, wireless remote control, zoom in/out, including color difference resolution device, auto focus, software oeration function, the maximum repaired BGA size 80*80mm, the minimum repaired BGA size 0.8*0.8mm. And equipped with automatic color difference resolution and brightness adjustment device, manual control alignment with laser red dot.

HD touch screen control

Touch screen interface. PLC control, real-time temperature curve display, can display the setting curve and measured curve, can analyze the temperature vurve.

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Mike

Canada Oct 25.2024

Helpful (30)

A reliable workhorse. I run a small repair business, and this station handles 90% of my BGA jobs. The hot air is powerful yet controllable. Had a minor question about the voltage setting, and their tech support called me to explain – impressive!

Dian Sari

Indonesia Aug 13.2023

Helpful (22)

Kami di Bandung sangat senang dengan WDS-620. Mesin ini presisi, tahan lama, dan layanan pelanggan Wisdomshow sangat ramah.

Tsegaye Bekele

Ethiopia Sep 21.2022

Helpful (23)

Very good machine for our repair shop in Addis Ababa. The alignment is precise, but the interface could be more intuitive. Overall, good value.
