Product Details
Place of Origin: China
Brand Name: WDS
Certification: CE
Model Number: WDS-850
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 UNIT
Packaging Details: Wooden case
Delivery Time: 8-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 150 UNITS PER MONTH
Characteristic: |
X/Y Automatically Controlled |
Function: |
Automatic Feeding Device |
Total Power Supply: |
8400W |
Power Supply: |
220V, 50/60Hz |
Weight: |
200KG |
Characteristic: |
X/Y Automatically Controlled |
Function: |
Automatic Feeding Device |
Total Power Supply: |
8400W |
Power Supply: |
220V, 50/60Hz |
Weight: |
200KG |

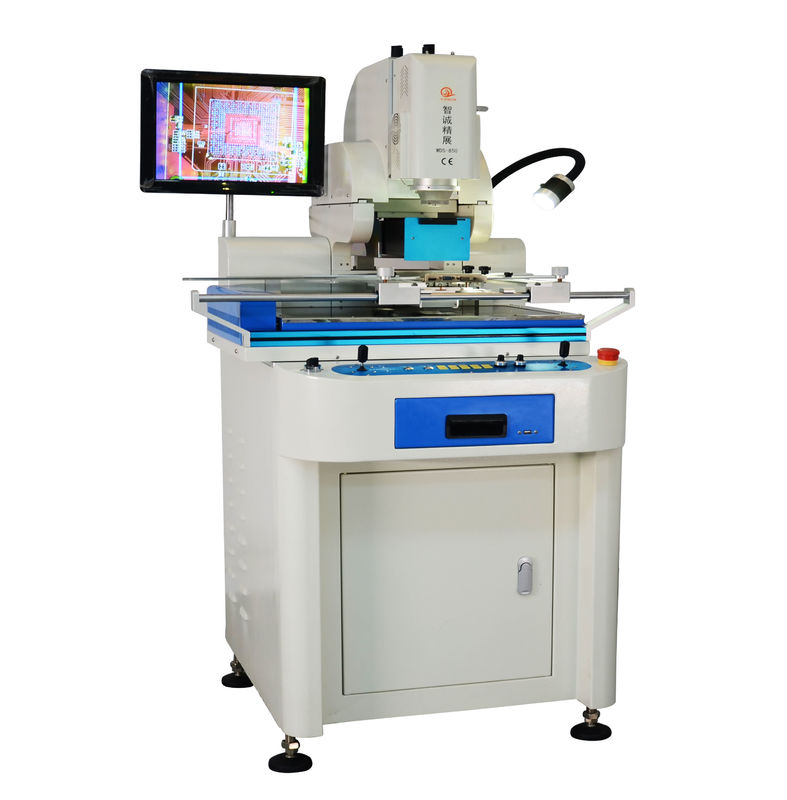

WDS-850 Optical alignment automatic repair equipment
Specification
| Model | WDS-850 |
| Total power supply | 8400W |
| Upper heating power supply | 1600W |
| Lower heating power supply | 1600W |
| IR heating power supply | 5000W(2000W controlled) |
| Power supply | 220V, 50/60Hz |
| Maximum | 680*550mm |
| Minimum | 10*10mm |
| Temperature measuring interfaces | 5pcs |
| Chip zoom in and zoom out | 2-50/times |
| The PCB thickness | 0.5～8mm |
| Apply chip size | 0.8*0.8～120*120mm |
| Applicable minimum chip spacing | 0.15mm |
| Maximum mouting load | 300g |
| Mounting precision | ±0.01mm |
| Machine dimension | L970*W700*H830mm |
| Machine weight | 200KG |
Excellent performance features
HD optical alignment and intelligent control
The integrated design of hot air head and mounting head has the functions of automatic mounting, automatic welding and automatic disassembly. High precision K-type thermocouple (KSENSOR) cLOSED Loop control, up and down independent temperature measurement, temperature control accuracy up to ± 1 degree, Over-temperature protection alarm function, software encryption and anti-stay function.
HD display
High-definition imported CCD(2 million pixels) digital imaging, automatic optical zoom system, automatic precision alignment control system with laser red dot, using 15 inch high-definition industrial display screen dispaly.
Vacuum adsorption and preheating platform
