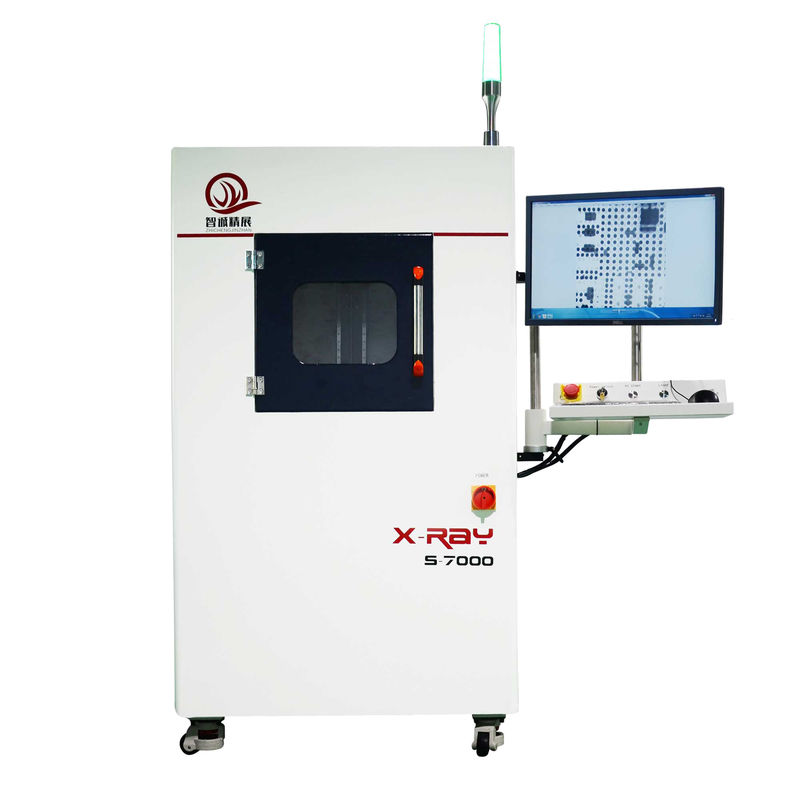

Micro Focus X Ray Inspection Machine S 7000 220V With CNC Function

Name: Micro Focus X Ray Inspection Machine S 7000 220V With CNC Function
Brand: Shenzhen Wisdomshow Technology Co.,ltd
SKU: S-7000
Price: 1,280.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WDS

Certification: CE

Model Number: S-7000

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Packaging Details: Wooden case

Delivery Time: 8-15 working days

Payment Terms: T/T, Western Union,

Supply Ability: 150 UNITS PER MONTH

Get Best Price

Product Details

Product Description

Ratings & Reviews

Highlight:
                                                                                                                                                            Micro Focus X Ray Inspection Machine, CNC Function X Ray Inspection Machine, CNC Circuit Board X Ray Machine


Total Power:	1400W	Equipment Size:	9309301750mm
Weight:	800KG	Supply Voltage:	110-220V, 50/60Hz
Computer:	DELL Windows 10

Total Power:	1400W
Equipment Size:	9309301750mm
Weight:	800KG
Supply Voltage:	110-220V, 50/60Hz
Computer:	DELL Windows 10

Micro Focus X Ray Inspection Machine S 7000 220V With CNC Function

Offline X-RAY S-7000 Detection equipment

The two main components of X-RAY are:X-RAY source and detector.

The X-ray source is Japanese Hamamatsu(HAMAMATSU), and the detector is an Iray ultra-high-definition digital flat-panel detector.

Product features:

The product is suitable for electronics manufacturing, semiconductors, microwave decices, LEDs, connectors, etc.
High-definition detection images, which can detect product misalignment, continuoustin, virtual solder, air bubbles, etc.
Using Hamamatsu 90KV 15 μ m light tube, maintenance-free and long life.
With CNC function, it can automatically detect and judge NG, PASS, OR.
Adopt digital high-definition flat panel detector.
4-axis linkage control system.

Speed and accuracy:

* Semiconductor package *Electronic connector module *Die casting *Automotive

* Battary *LED *PCB'A Assembly

Specification

model	S-7000
X-ray source	Tube style	90kv
	Tube voltage	10-200μA
	Tube current	8W
	Optical tube power	5μm
	Focus size	150times geometric magnification, 1500 times system magnification
	Geometric magnification	Air-cooled
Radiation safety	Cooling method of bare pipe	YFHB No.【20200072】
Radiation exemption qualification	have
Flat panel detector	etector category	Digital HD flat panel detector
	Pixel matrix	1536*1536pixels
	Image frame rate(1*1)	20fps
	Pixel spacing	85μm
Computer	IPC-510	Windows 10
Load-bearing platform	10kg
Detectable size	350*330mm
Equipment Specifications	Total power	1400W
	Equipment size	9009301580mm
	equipment weight	about 800kg
	Supply voltage	110-220V 50-60Hz
