Product Details
Place of Origin: CHINA
Brand Name: WDS
Certification: CE,FDA
Model Number: WDS900
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 UNIT
Packaging Details: Wooden case
Delivery Time: 8-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 150 UNITS PER MONTH
Cooling Method: |
Air Cooling |
Warranty: |
1 Year |
Technology: |
Robot Controller Technology |
Applicable Industries: |
Machinery Repair Shops, Retail |
Max Pcb Size: |
760mm X 630mm |
Customized Support: |
OEM |
Lower Heating Power: |
6000W |
Available Pcb Size: |
Max 760*630mm Min 10*10 Mm |
Core Components: |
PLC |
Power Supply: |
AC 220V/110V |
Power: |
9000W |
Heating Power: |
Upper Hot Air:1600W,Lower Hot Air:1600W |
Cooling Method: |
Air Cooling |
Warranty: |
1 Year |
Technology: |
Robot Controller Technology |
Applicable Industries: |
Machinery Repair Shops, Retail |
Max Pcb Size: |
760mm X 630mm |
Customized Support: |
OEM |
Lower Heating Power: |
6000W |
Available Pcb Size: |
Max 760*630mm Min 10*10 Mm |
Core Components: |
PLC |
Power Supply: |
AC 220V/110V |
Power: |
9000W |
Heating Power: |
Upper Hot Air:1600W,Lower Hot Air:1600W |

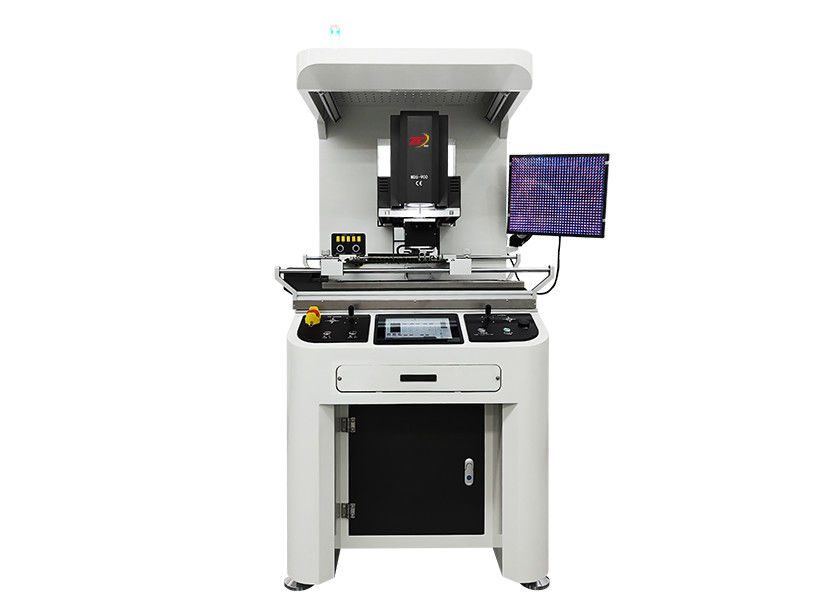

Specification of WDS900 large BGA rework station:
| Power Supply | AC380V±10% 50/60HZ |
| Power | 9.6KW(Max),Top heater(1.6KW) Bottom heater (1.6KW),IR Preheater (6KW) |
| PCB Size | 760*630mm(Max);10*10mm(Min) |
| BGA Chip Size | 120*120mm(Max);0.6*0.6mm(Min) |
| IR Heater Size | 700*565mm |
| Motion Control | X/Y/Z |
| Temperature Sensor | 5 Pcs |
| Control System | Industrial PC+ Motion control system+Temperature control module+Servo drive |
| Display System | 24" HD industrial display |
| Alignment System | 5 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator |
| Vacuum Adsorption | Automatic |
| Alignment Accuracy | ±0.01mm |
| Temperature Control | K-type thermocouple closed-loop control with accuracy up to ±1℃ |
| Feeding Device | Yes |
| Positioning | V-groove with universal fixture (shaped fixture can be customized) |
| Dimensions | L1110*W830*H1740mm |
| Weight |
230KG |
